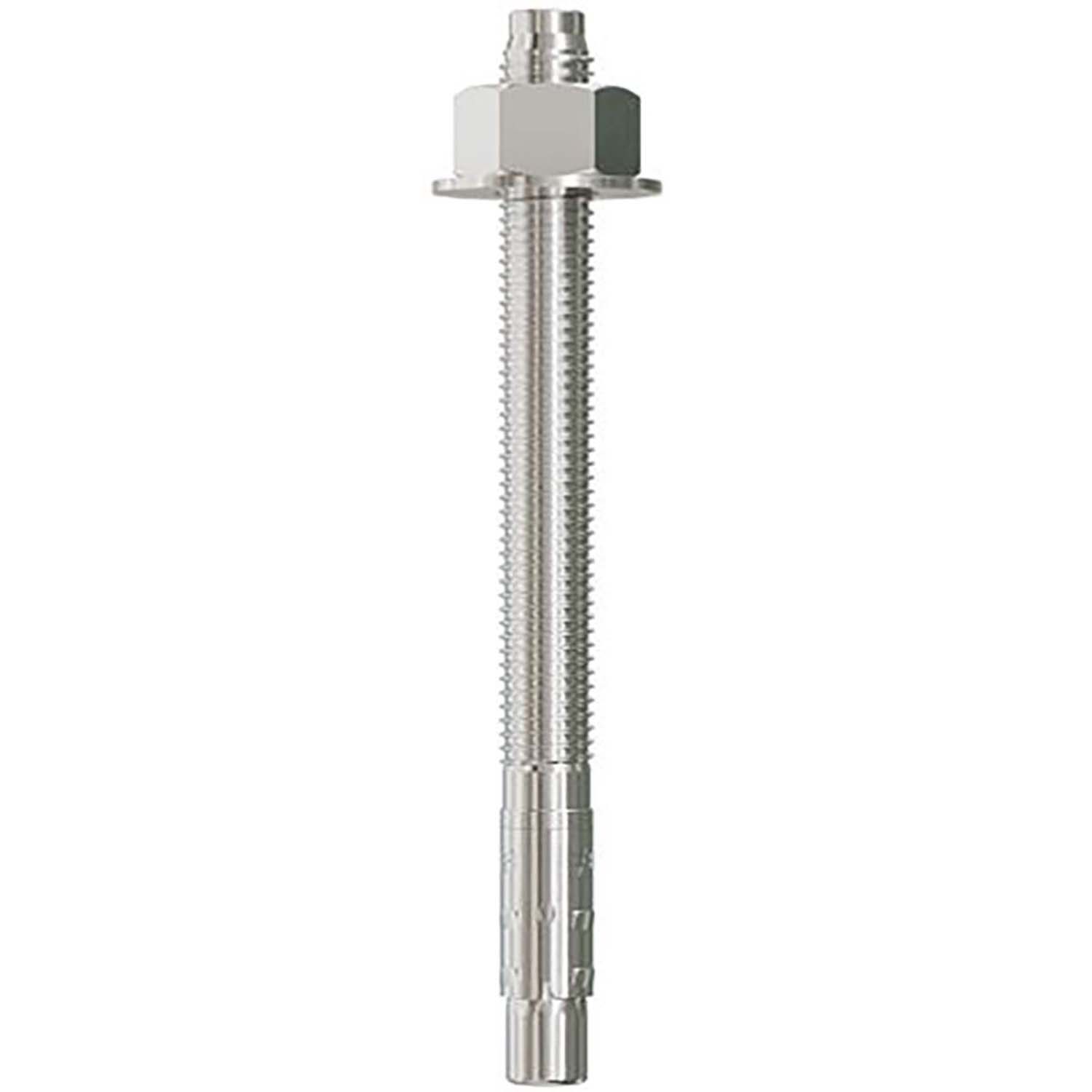

WEDGE-ALL WEDGE ANCHORS (MULTIPLE OPTIONS AVAILABLE)
| Product | |
|---|---|
|
1" X 12" ZINC
Simpson Strong-Tie 581154 WA11200 |
|
1" X 6" ZINC
Simpson Strong-Tie 581131 WA16000 |
|
3/8" X 2-1/4" ZINC
Simpson Strong-Tie 581142 WA37214 |
|
3/8" X 2-3/4" ZINC
Simpson Strong-Tie 581149 WA37234 |
|
3/8" X 2-3/4" STAINLESS STEEL
Simpson Strong-Tie 581307 WA372344SS |
|
3/8" X 3" STAINLESS STEEL
Simpson Strong-Tie 581119 WA373004SS |
|
3/8" X 3-1/2" ZINC
Simpson Strong-Tie 581308 WA37312 |
|
3/8" X 3-3/4" ZINC
Simpson Strong-Tie 581129 WA37334 |
|
3/8" X 3-3/4" STAINLESS STEEL
Simpson Strong-Tie 581108 WA373344SS |
|
3/8" X 5" ZINC
Simpson Strong-Tie 2104268 WA37500 |
|
3/8" X 5" STAINLESS STEEL
Simpson Strong-Tie 581122 WA375004SS |
|
1/2" X 3-3/4" STAINLESS STEEL
Simpson Strong-Tie 581309 WA503344SS |
|
1/2" X 4-1/4" STAINLESS STEEL
Simpson Strong-Tie 581310 WA504144SS |
|
1/2" X 4-1/4" GALVANIZED
Simpson Strong-Tie 581311 WA50414MG |
|
1/2" X 5-1/2" STAINLESS STEEL
Simpson Strong-Tie 581124 WA505124SS |
|
1/2" X 8-1/2" ZINC
Simpson Strong-Tie 581125 WA50812 |
|
5/8" X 10" ZINC
Simpson Strong-Tie 581312 WA62100 |
|
5/8" X 3-1/2" ZINC
Simpson Strong-Tie 581155 WA62312 |
|
5/8" X 5" GALVANIZED
Simpson Strong-Tie 581313 WA62500MG |
|
5/8" X 5" STAINLESS STEEL
Simpson Strong-Tie 581314 WA626004SS |
|
5/8" X 8-1/2" ZINC
Simpson Strong-Tie 581316 WA62812 |
|
3/4" X 10" ZINC
Simpson Strong-Tie 581317 WA75100 |
|
3/4" X 12" ZINC
Simpson Strong-Tie 581318 WA75120 |
|
3/4" X 4-1/4" ZINC
Simpson Strong-Tie 581150 WA75414 |
|
3/4" X 5-1/2" STAINLESS STEEL
Simpson Strong-Tie 581120 WA755124SS |
|
3/4" X 7" ZINC
Simpson Strong-Tie 581147 WA75700 |
|
3/4" X 8-1/2" ZINC
Simpson Strong-Tie 581148 WA75812 |
|
7/8" X 10" ZINC
Simpson Strong-Tie 581321 WA87100 |
|
7/8" X 6" ZINC
Simpson Strong-Tie 581123 WA87600 |
|
7/8" X 8" ZINC
Simpson Strong-Tie 581322 WA87800 |
Description
The Wedge-All wedge-style expansion anchor is intended for use in solid concrete or grout-filled masonry. This anchor is best suited in installations where a building code approval for seismic and cracked/uncracked concrete is not required. Threaded studs are set by tightening the nut to the specified torque.
Key Features
- One-piece, wrap-around clip ensures uniform holding capacity
- Threaded end is chamfered for ease of starting nut
- Available in a wide range of diameters and lengths
