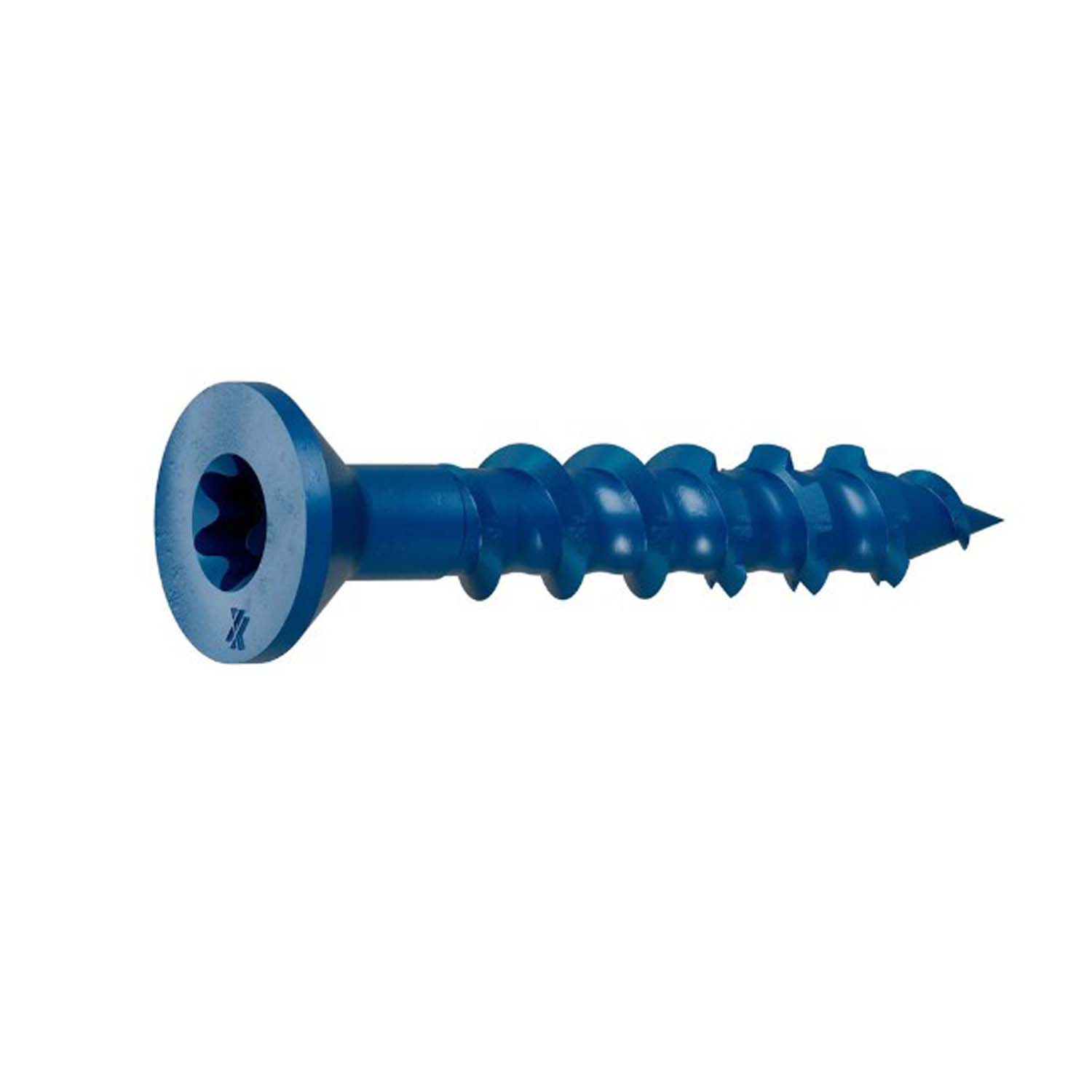

TURBO SCREW ANCHOR 3/16 IN. X 1-1/4 FLAT HEAD BLUE ZINC 100/PKG

Description

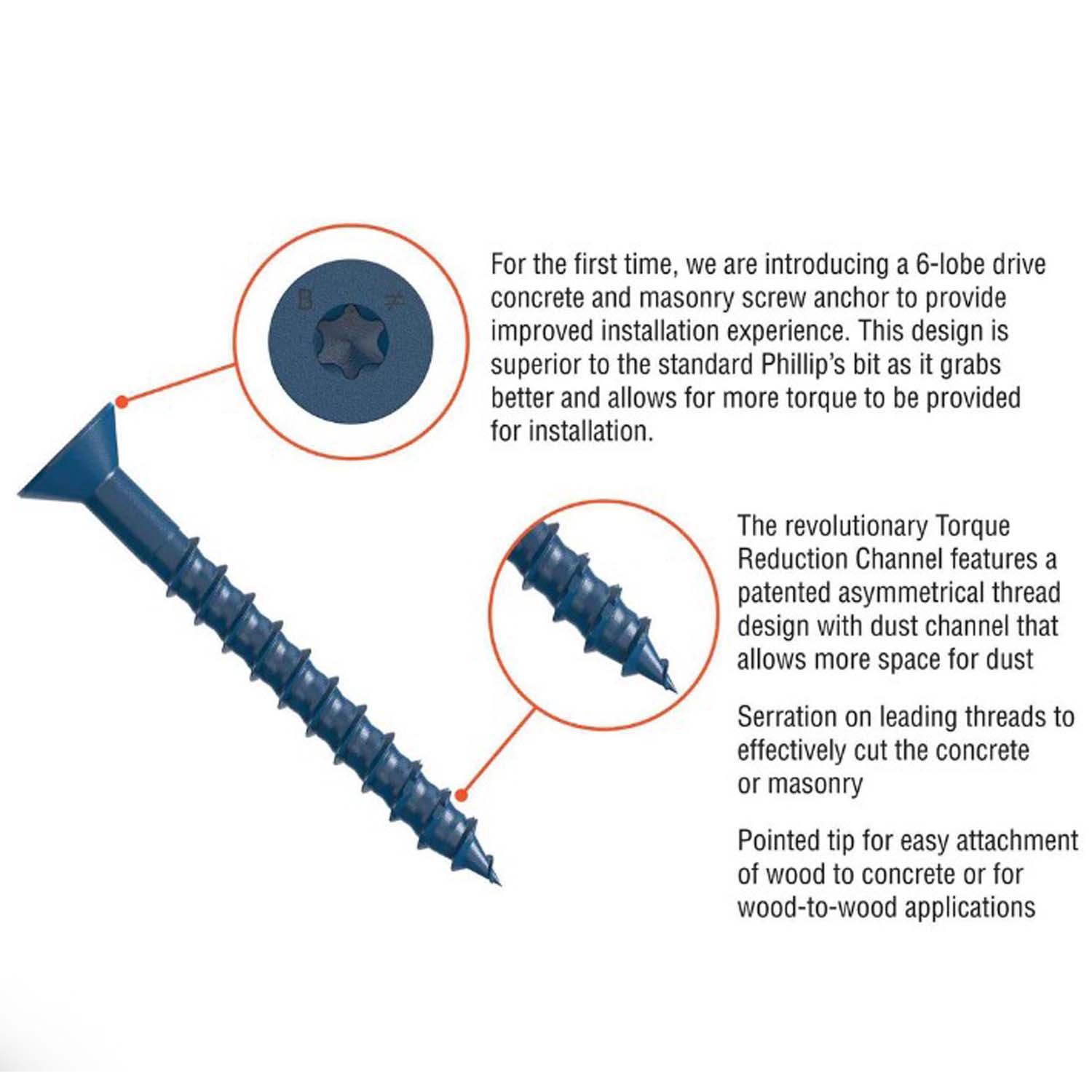

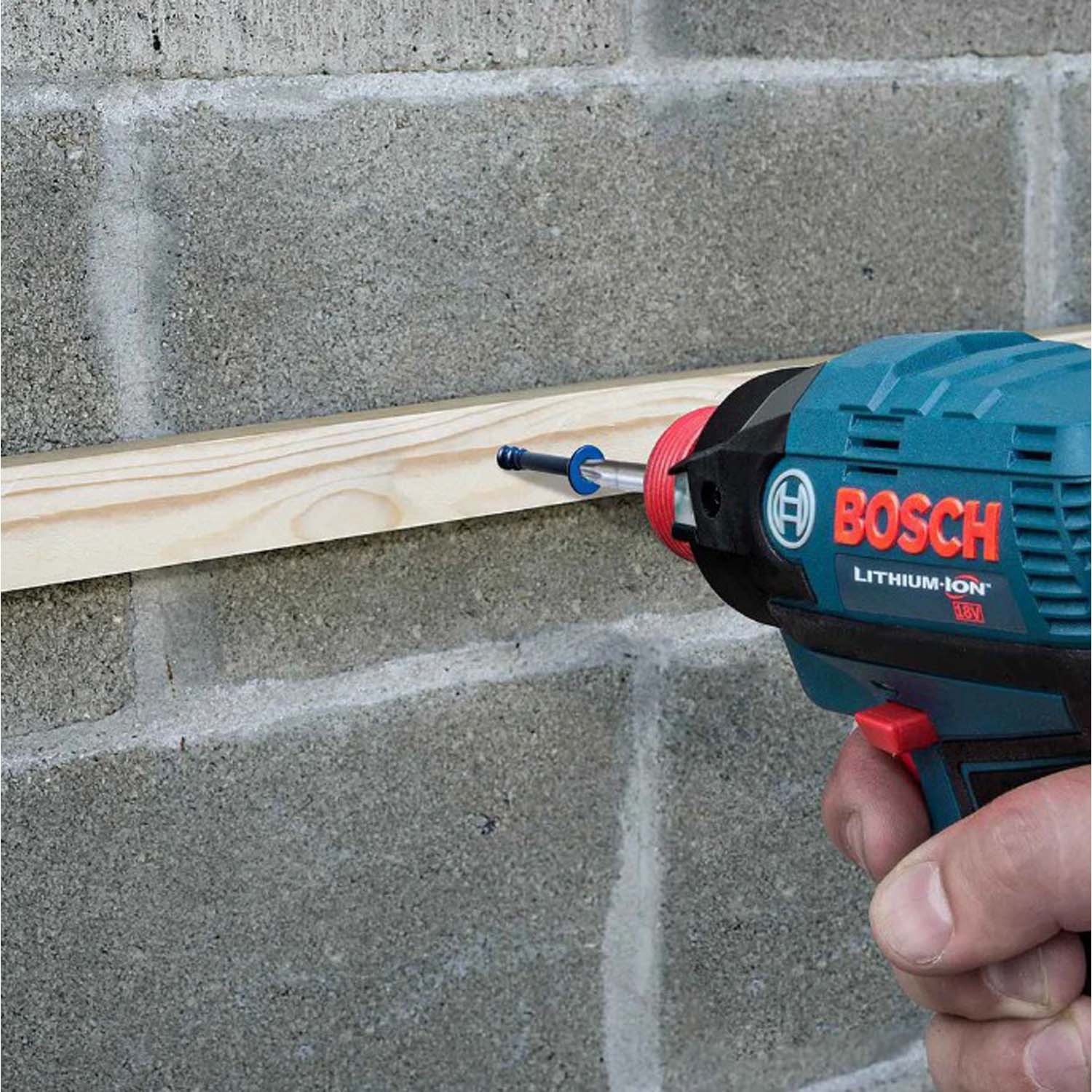

The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener that features an innovative torque reduction channel to trap drilling dust where it can't obstruct thread action. This feature significantly reduces binding, stripping, and snapping without compromising strength. It has smooth driving with less torque and superior holding power due to the patented reverse thread design. The Titen Turbo screw cuts into concrete or masonry for quick, easy installation in wood-to-concrete and wood-to-wood anchoring applications. This heavy-duty fastener is code listed in accordance with ICC-ES AC193 for uncracked concrete and ICC-ES AC106 for masonry applications.

Key Features

• Designed for installation with an impact driver or cordless drill
• Installation using the Titen Turbo Installation Tool is recommended
• Includes (1) T25 drive bit
• Matched-tolerance bit not required; use a standard ANSI drill bit for installation
• Intended for use in dry interior environments only
• Specifications:
  • Diameter: 3/16"
  • Finish: Blue Zinc
  • Length: 1-1/4"
  • Material: Carbon Steel
  • Drill bit size: 5/32"
  • Drive type: T25 Star Drive
  • Head type: Flat Head
  • Manufacturer name: Simpson Strong-Tie
