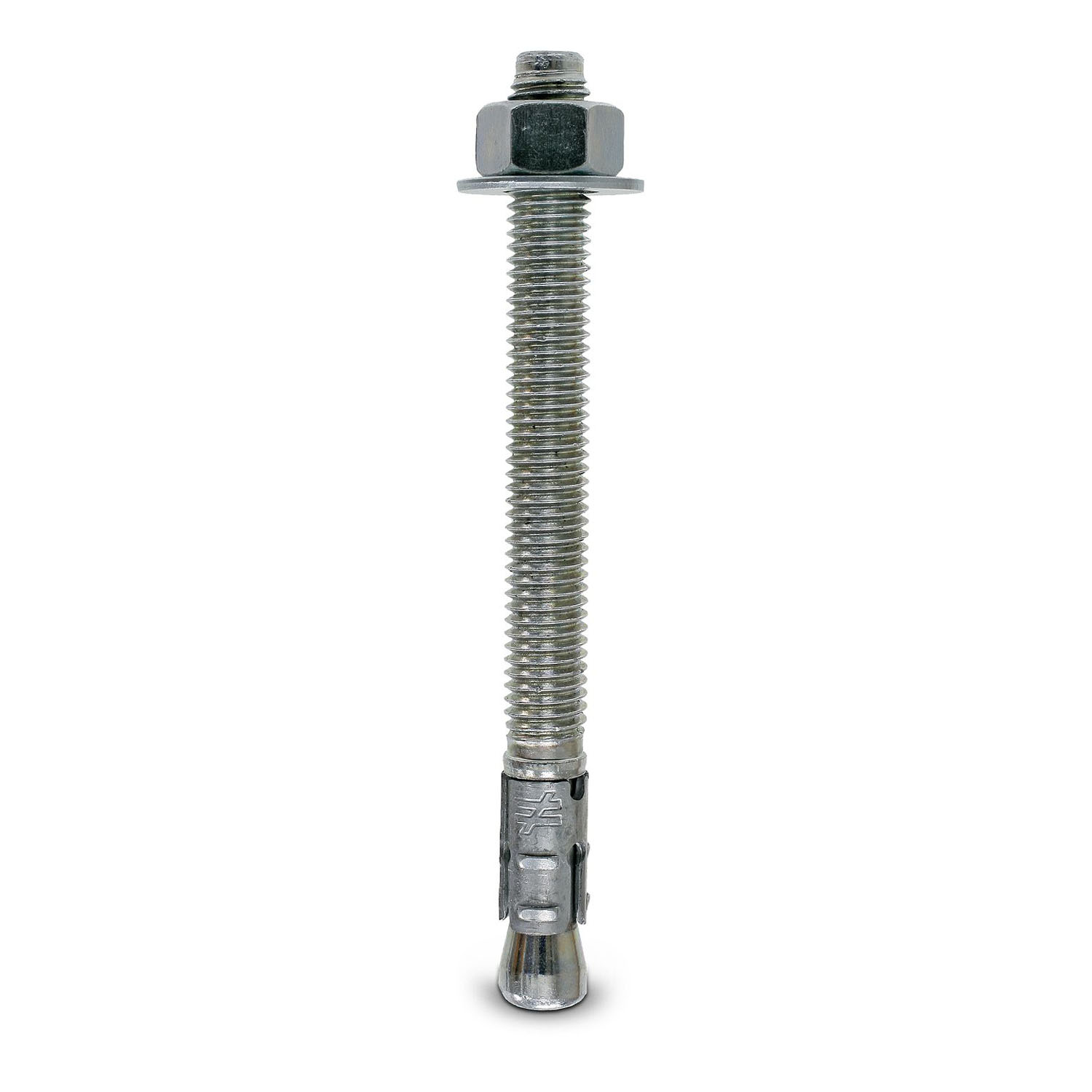

STRONG-BOLT 2 WEDGE ANCHORS (MULTIPLE OPTIONS AVAILABLE)
3/4" X 4-3/4" ZINC
Simpson Strong-Tie
581011
( STB2-75434R10)
1/2" X 2-3/4" ZINC
Simpson Strong-Tie
581015
( STB2-50234R25)
5/8" X 6" ZINC
Simpson Strong-Tie
581126
( STB2-62600)
5/8" X 4-1/2" ZINC
Simpson Strong-Tie
581163
( STB2-62412)
5/8" X 6" STAINLESS STEEL 20 COUNT
Simpson Strong-Tie
581164
( STB2-626004SS)
1/2" X 3-3/4" STAINLESS STEEL
Simpson Strong-Tie
581165
STB2-503344SS
3/8" X 7" ZINC
Simpson Strong-Tie
581177
( STB2-37700)
1"X 10"
Simpson Strong-Tie
581327
STB2-1001000
1/4"X 1-3/4" ZINC
Simpson Strong-Tie
2102428
STB2-25134
1/4"X 2-1/4" ZINC
Simpson Strong-Tie
2105579
STB2-25214
1/4"X 3-1/4" STAINLESS STEEL
Simpson Strong-Tie
581113
STB2-253144SS
3/8"X 3" CARBON STEEL
Simpson Strong-Tie
581160
STB2-37300
1/2"X 3-3/4" ZINC
Simpson Strong-Tie
2104240
STB2-50334
1/2"X 4-1/4" CARBON STEEL
Simpson Strong-Tie
581128
STB2-50414
1/2"X 5-1/2"
Simpson Strong-Tie
581162
STB2-50512
5/8"X 5" STAINLESS STEEL
Simpson Strong-Tie
2103062
STB2-625004SS
3/4"X 6-1/4" CARBON STEEL
Simpson Strong-Tie
581138
STB2-75614
3/4"X 7" STAINLESS STEEL
Simpson Strong-Tie
2104632
STB2-757004SS
Description

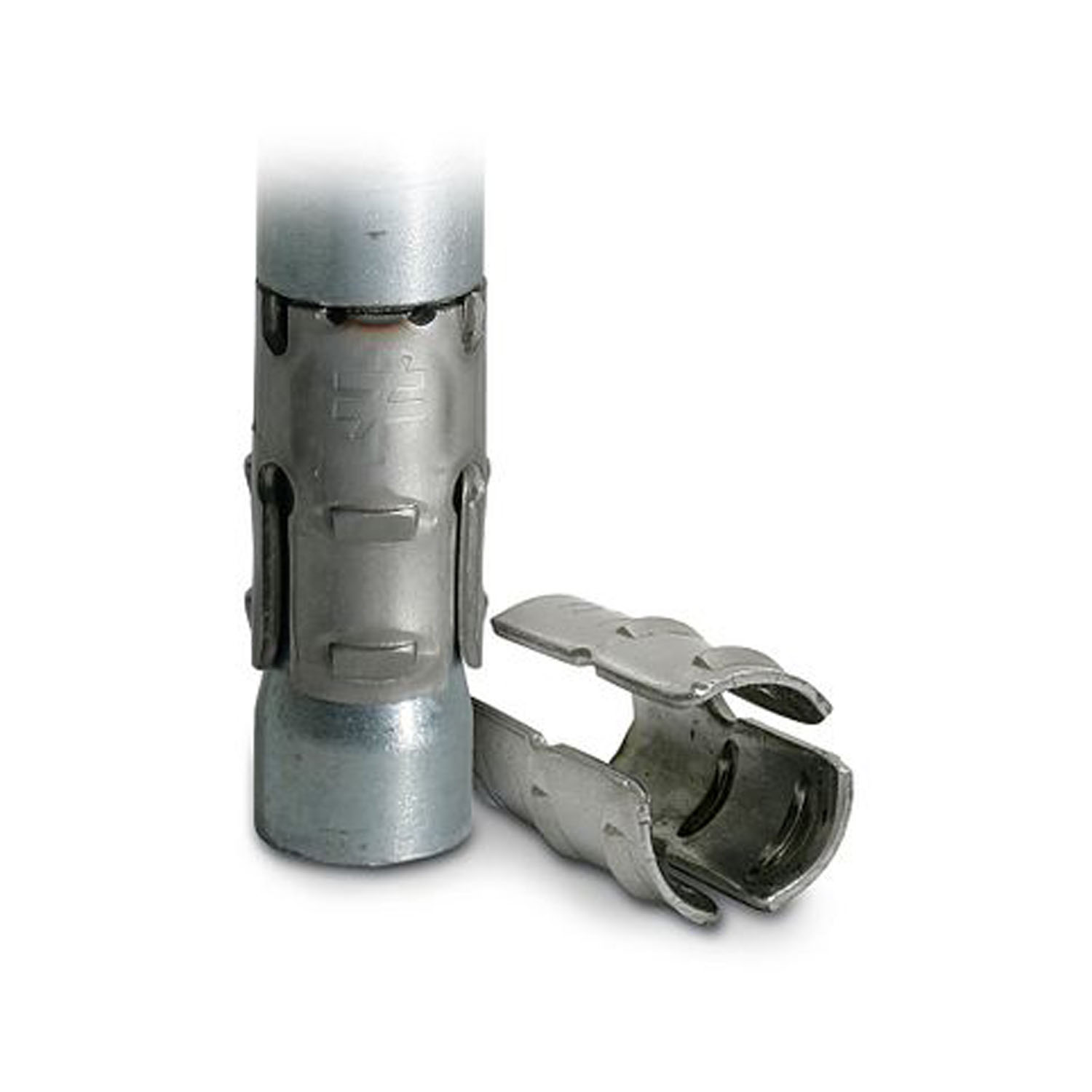

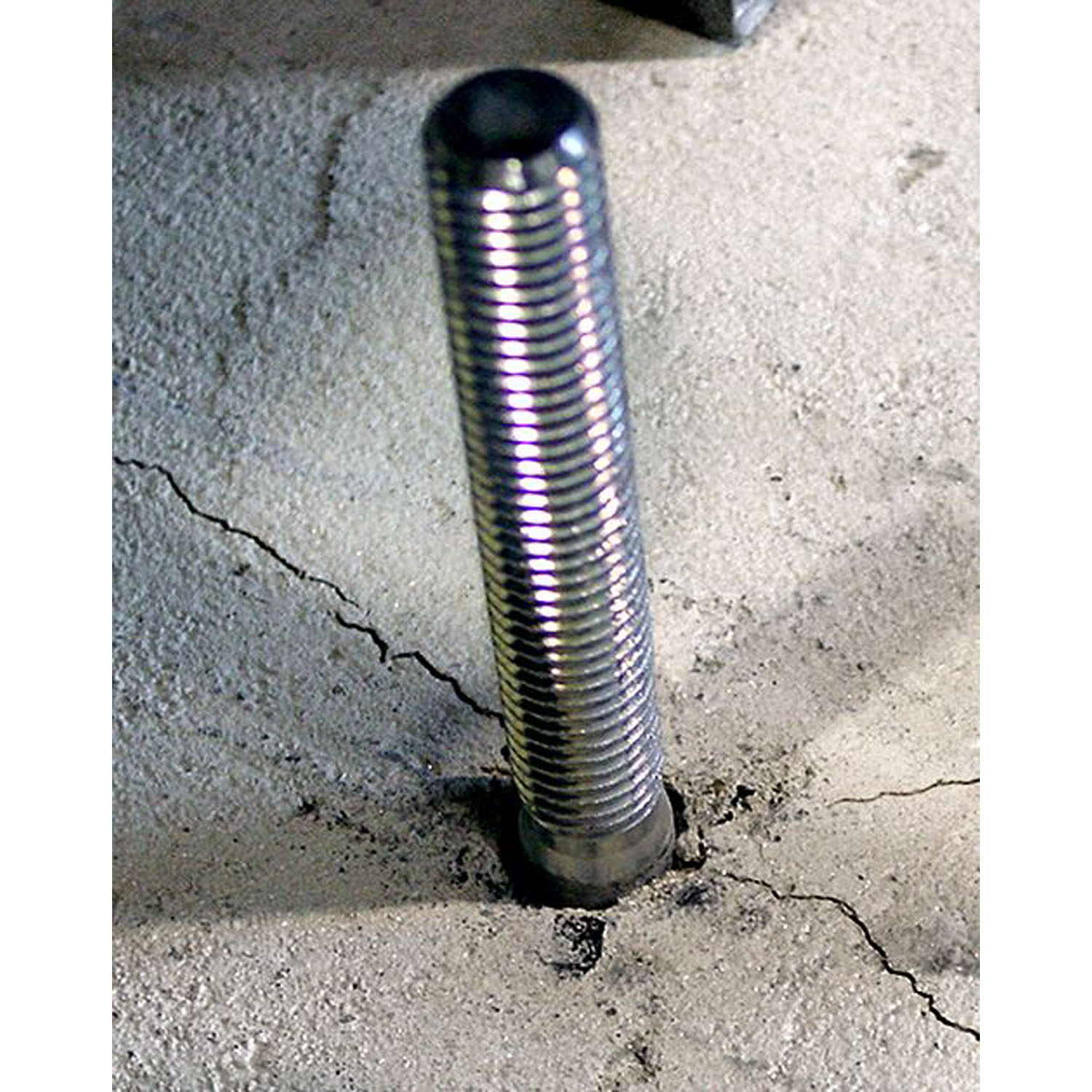

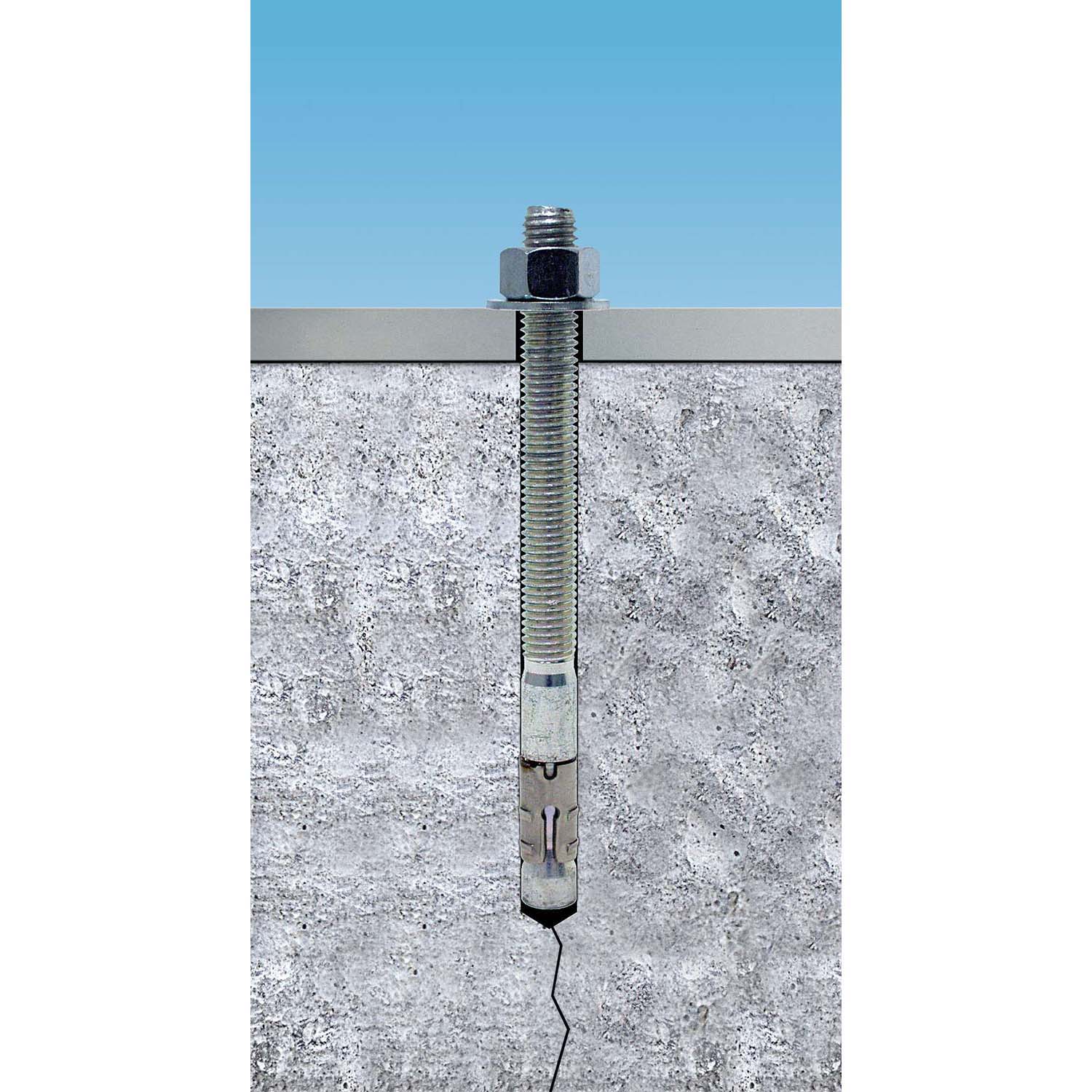

Code listed for cracked and uncracked concrete, and masonry applications, the Strong-Bolt 2 wedge-type expansion anchor is an optimal choice for high-performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location; this feature significantly increases the ability of Strong-Bolt 2 to carry load if the hole expands.
Key Features
- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions (seismic design categories A through F)
- Suitable for horizontal, vertical and overhead applications

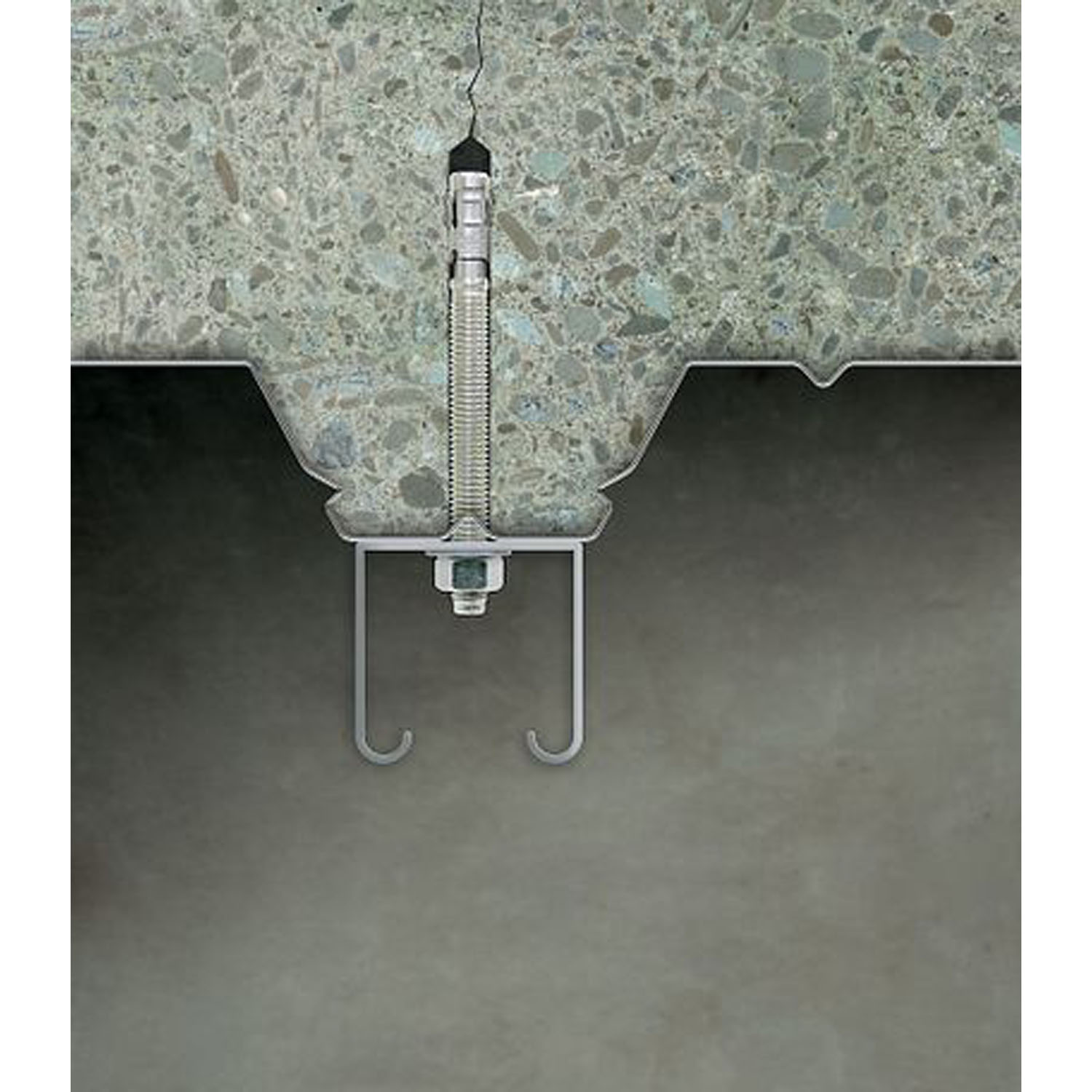

- Qualified for minimum concrete thickness of 3 1/4", and lightweight concrete-over-steel deck thickness of 2 1/2" and 3 1/4"
- Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
- Tested per ACI355.2 and AC193
