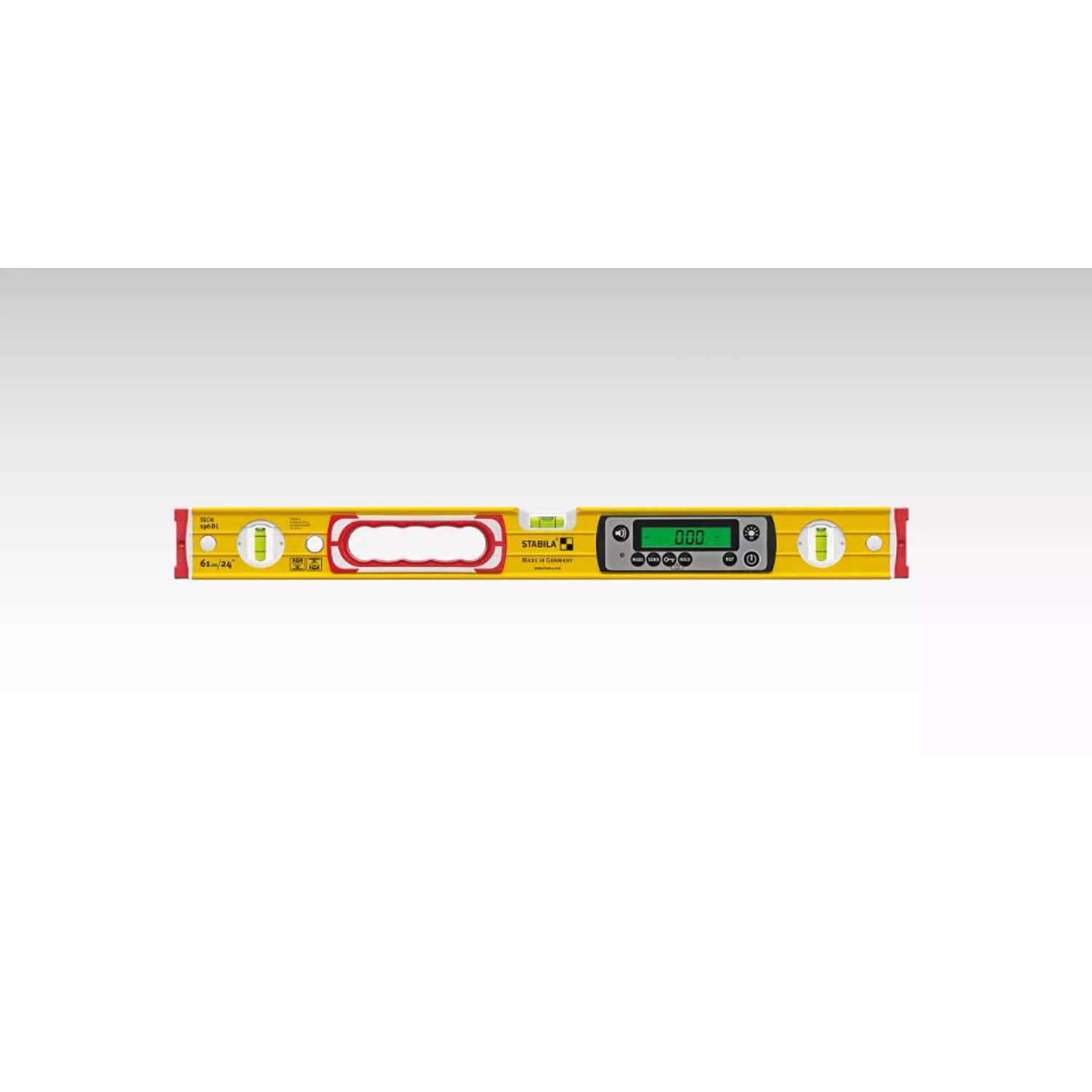

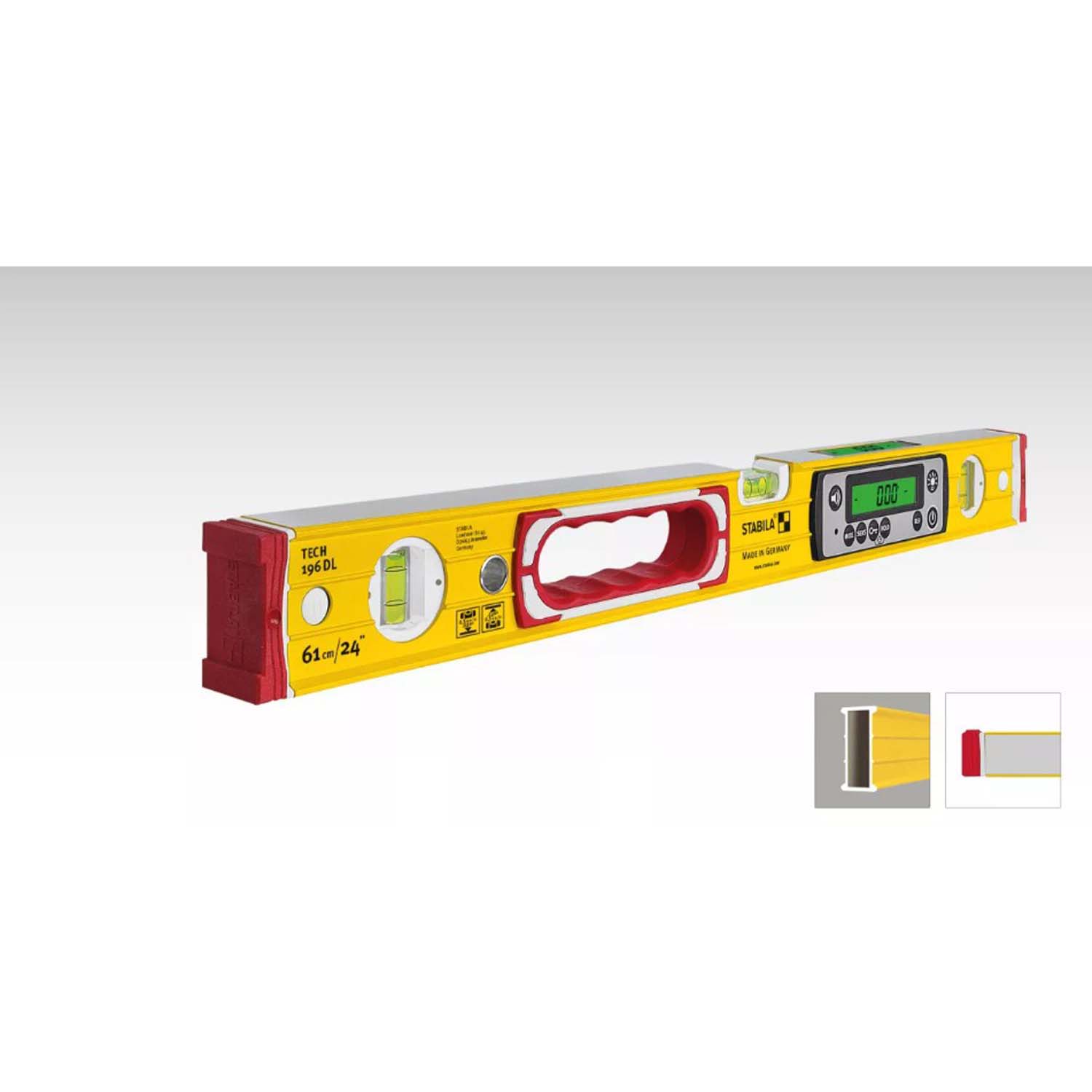

48 IN. IP 67 TECH DIGITAL LEVEL W/CASE

Description

Water, dirt and impacts – tools have to take a lot. With the TECH 196 DL electronic spirit level, you are ideally equipped for hard days at the construction site. Cleaning under running water is no problem thanks to ULTRA-PROTECT, and the high-precision electronic module does not need to be calibrated – even after falling or being exposed to temperature fluctuations. The innovative features of this German Made quality product simplify every measuring task: two digital displays with illumination, acoustic guidance and numerous display modes. State-of-the-art technology for productive work.

Key Features

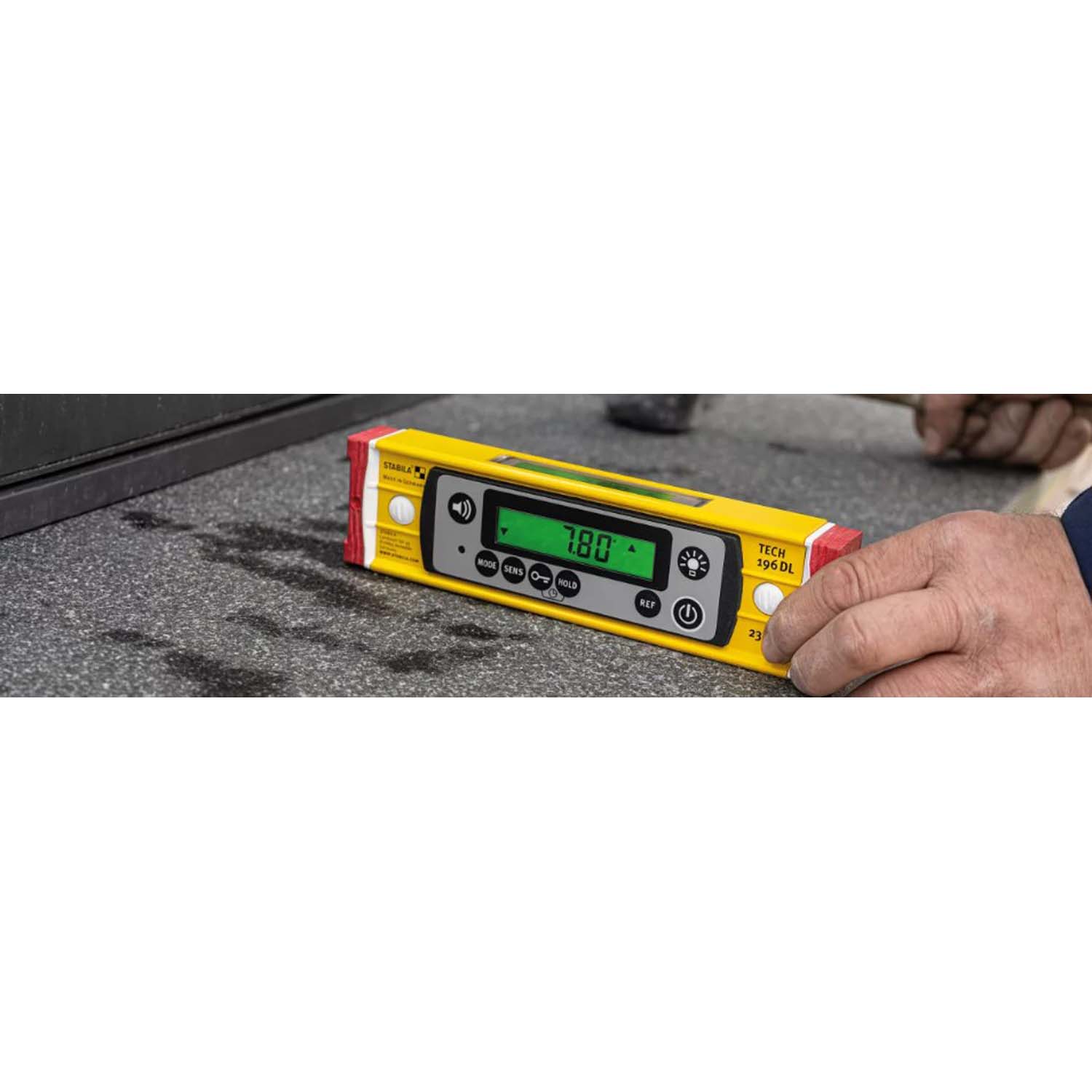

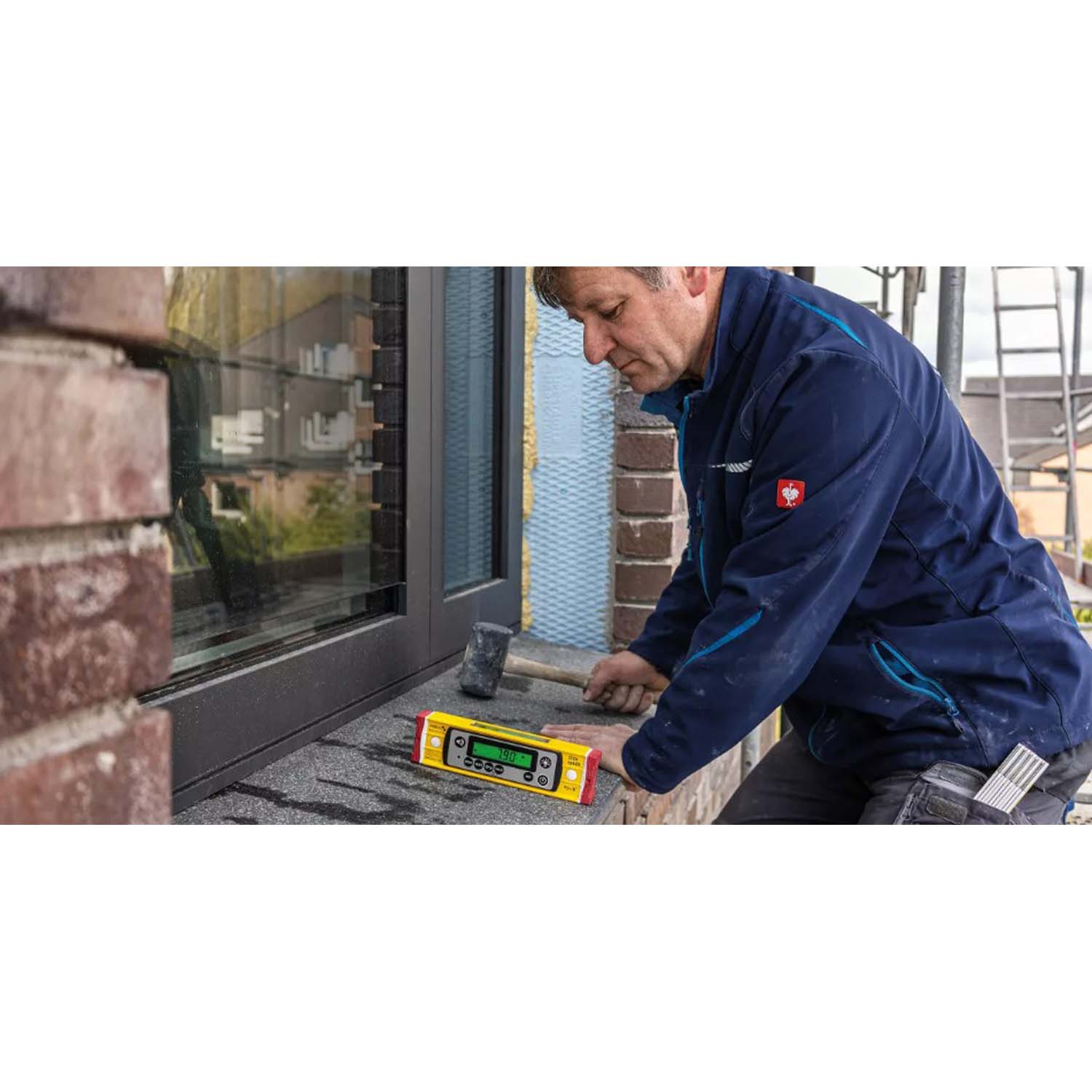

• 9 in, ultra-compact, 100% digital – Especially suitable for aligning short components.
• Electronic spirit level with two digital displays for instant measurement of inclines, slopes and angles.

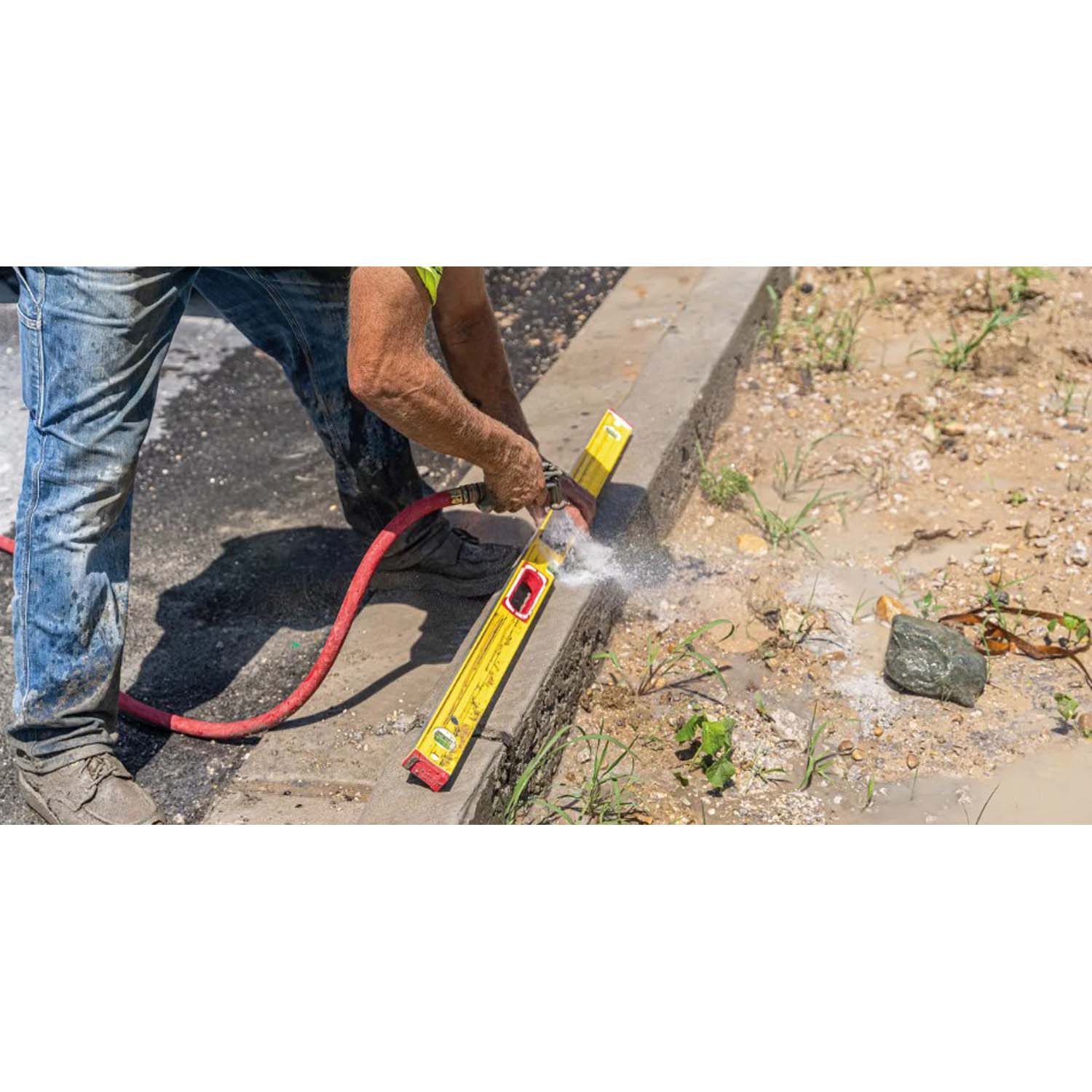

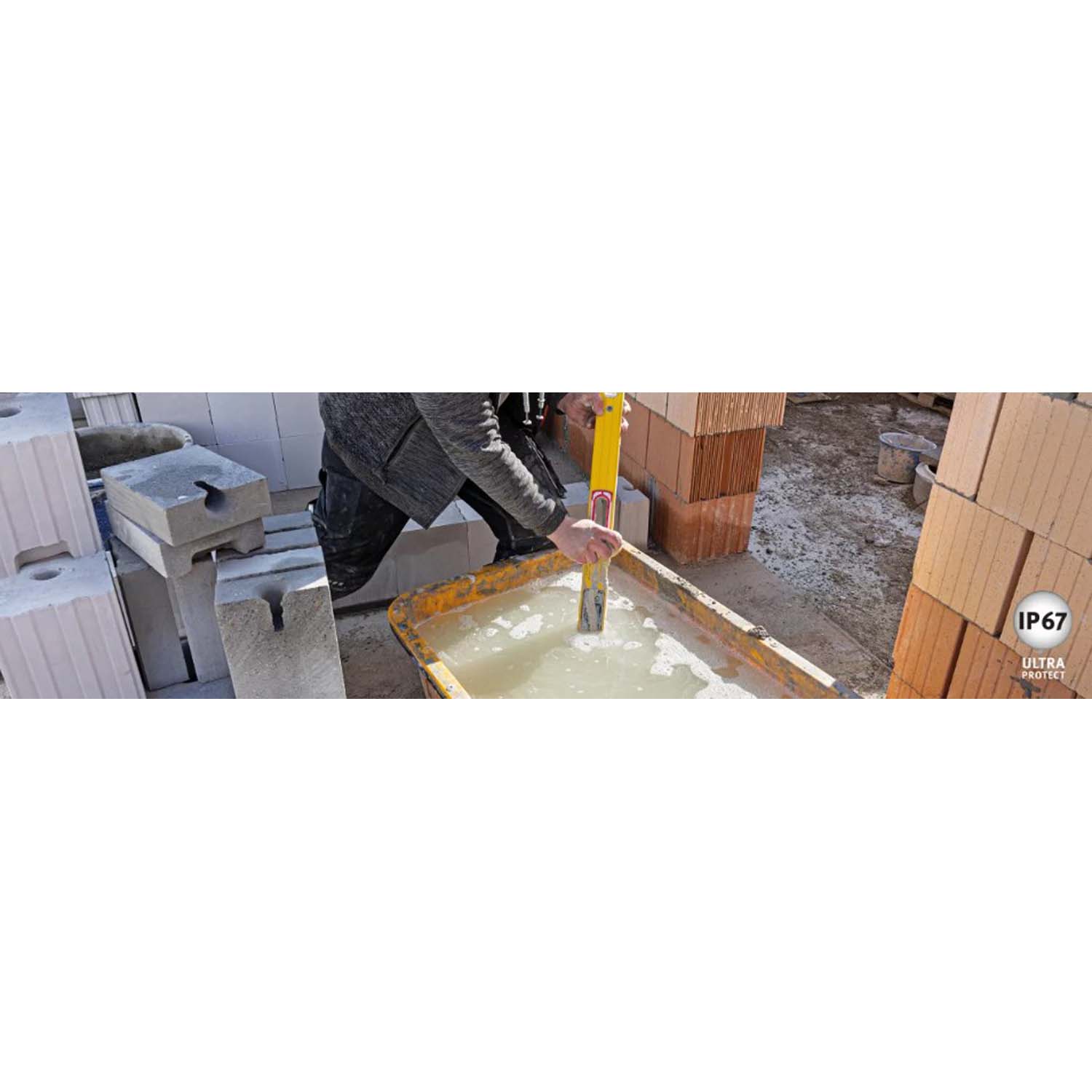

• ULTRA-PROTECT: Optimum protection against dust and water in accordance with IP 67 – the spirit level can be temporarily submerged.

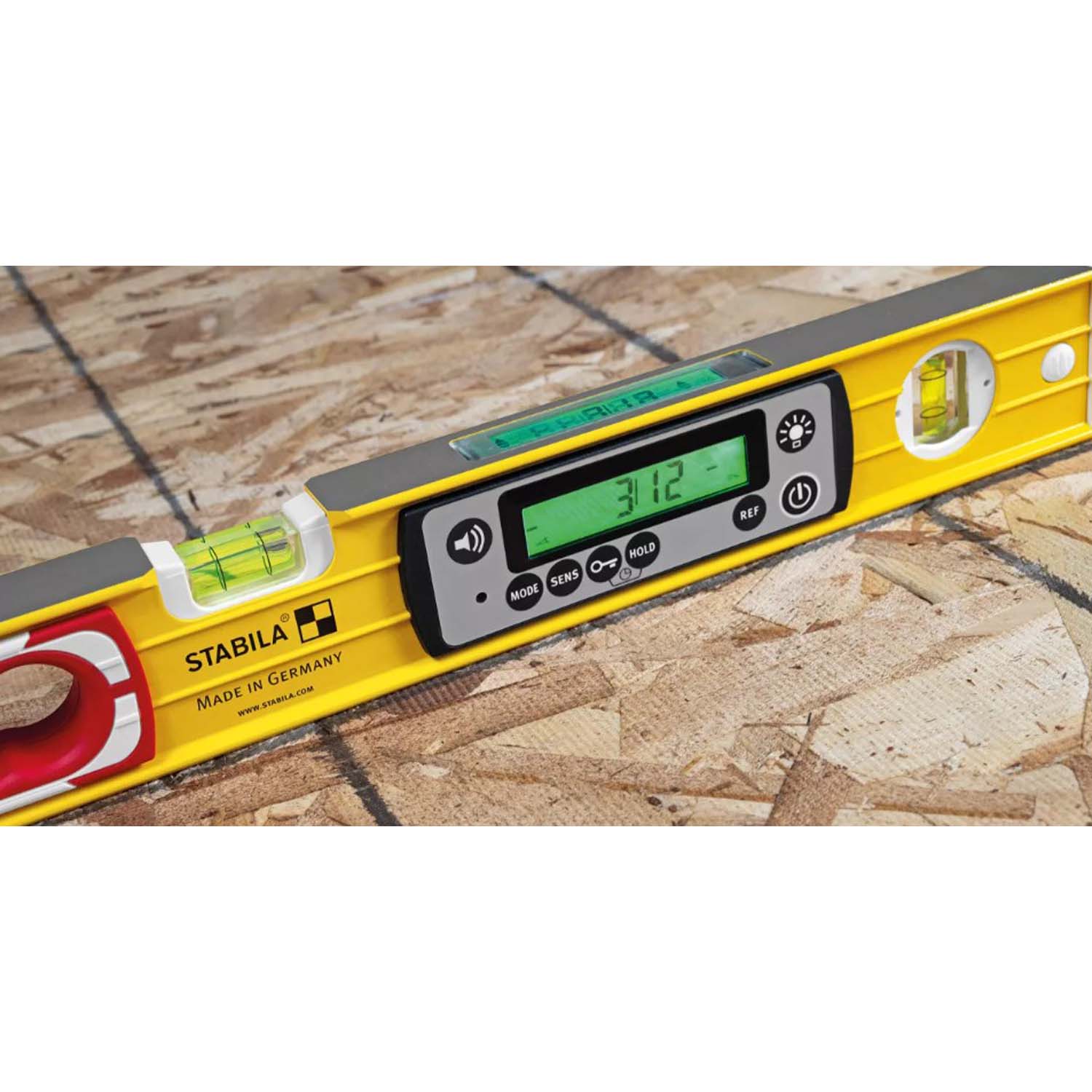

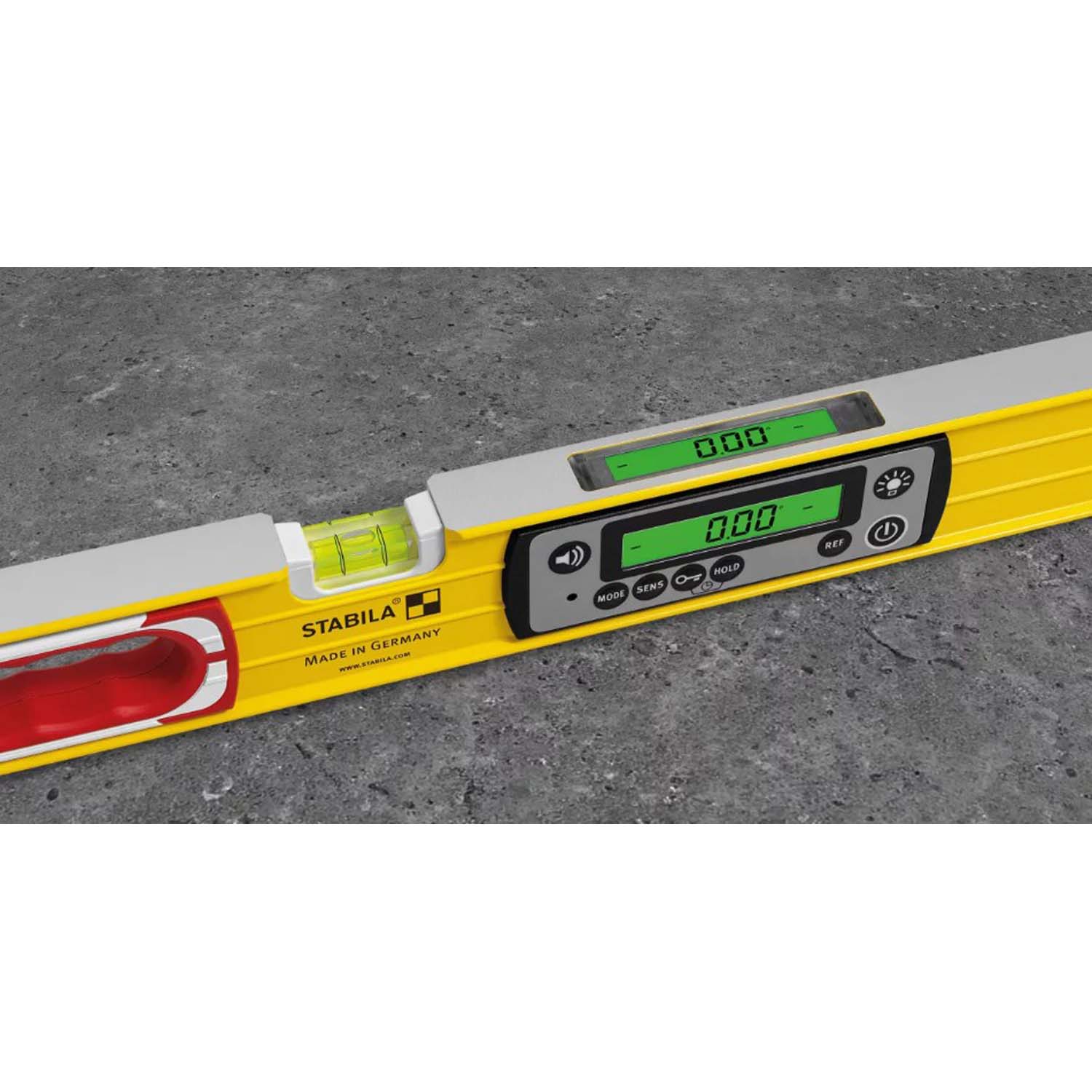

• Optimal read-out: Two digital displays, illuminated at the press of a button.
• Acoustic guidance: For quick alignment of elements without looking at the spirit level – with two different audible signals.

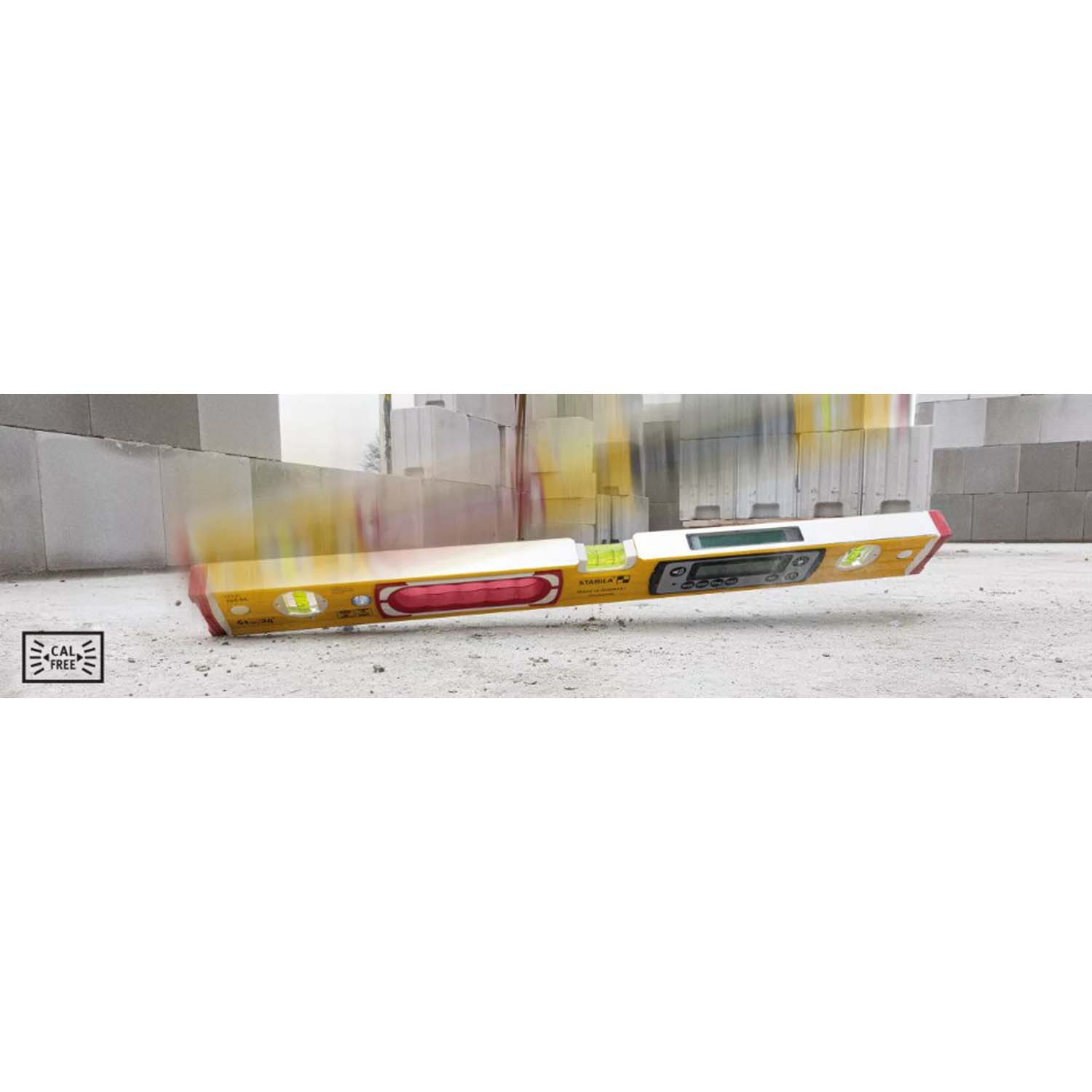

• CAL-FREE: In daily use, it is not necessary to calibrate the electronics – even after falling or being exposed to temperature fluctuations.
• The digital display rotates to the reverse position.
• REF-MODE: Take, save and transfer an angle measurement to other elements.
• KEY-LOCK: Keyboard lock to prevent accidental input.
• Display modes: °, %, mm/m, in/ft – decimal and as a fraction.
• ROOF-PITCH mode (in/ft) to quickly determine the roof pitch.
• Long operating time: Up to 400 hours.
• Includes bag for safe transport.
• Applications

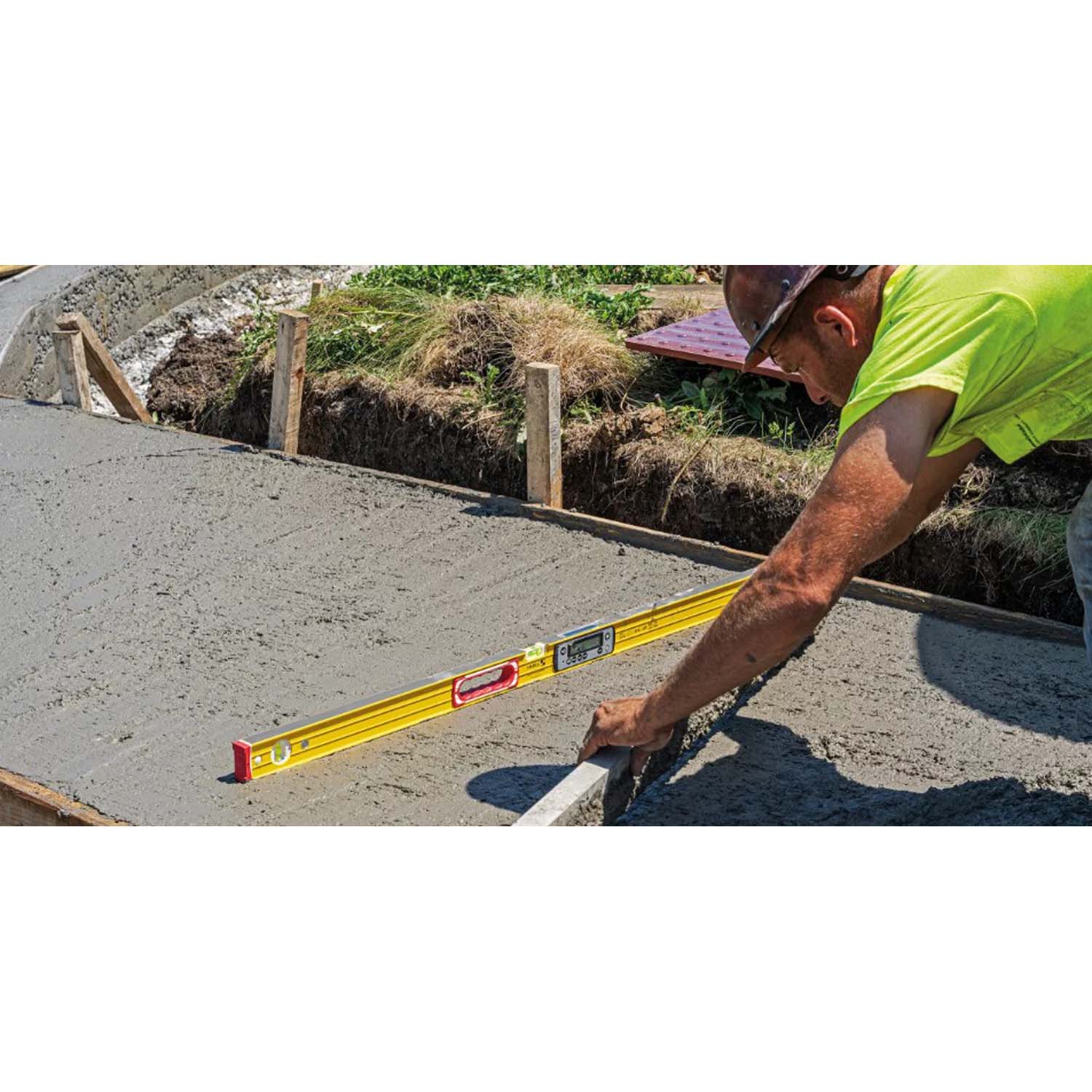

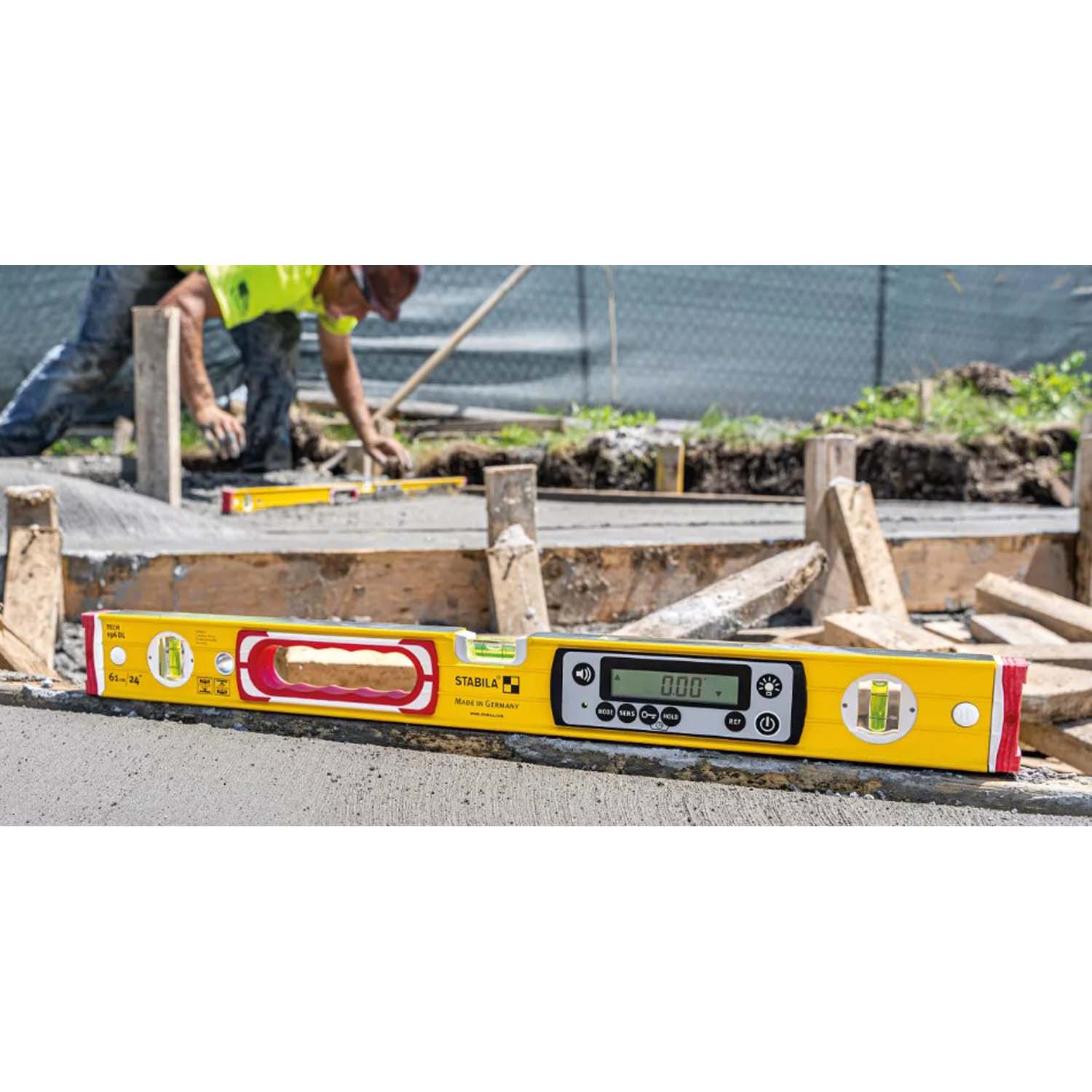

  • Particularly suitable for precise measurements in concrete work (ie; ADA Plates), joinery and carpentry work as well as kitchens, staircase construction and excavation work.
  • Ideal for contractors to check completed work: for example, to check the slope of a balcony.
  • The perfect assistant in gardening and landscaping when creating a garden path with a slope.
• Technical data
  • Measurement accuracy in normal position: ±1/32in @ 72in
  • Measurement accuracy in reverse position: ±1/32in @ 72in
  • Accuracy with electronic inclination measurement at 0° and 90° +/-: 0.05°
  • Accuracy with electronic inclination measurement at 1° to 89° +/-: 0.10°
  • Measuring modes: °, %, mm/m, inch/ft
  • Number of measuring surfaces: 2
  • End caps: Removable / Wall Grips / Shock Absorbing
  • Profile: Rectangular profile with ribs
  • Protection class: IP 67
