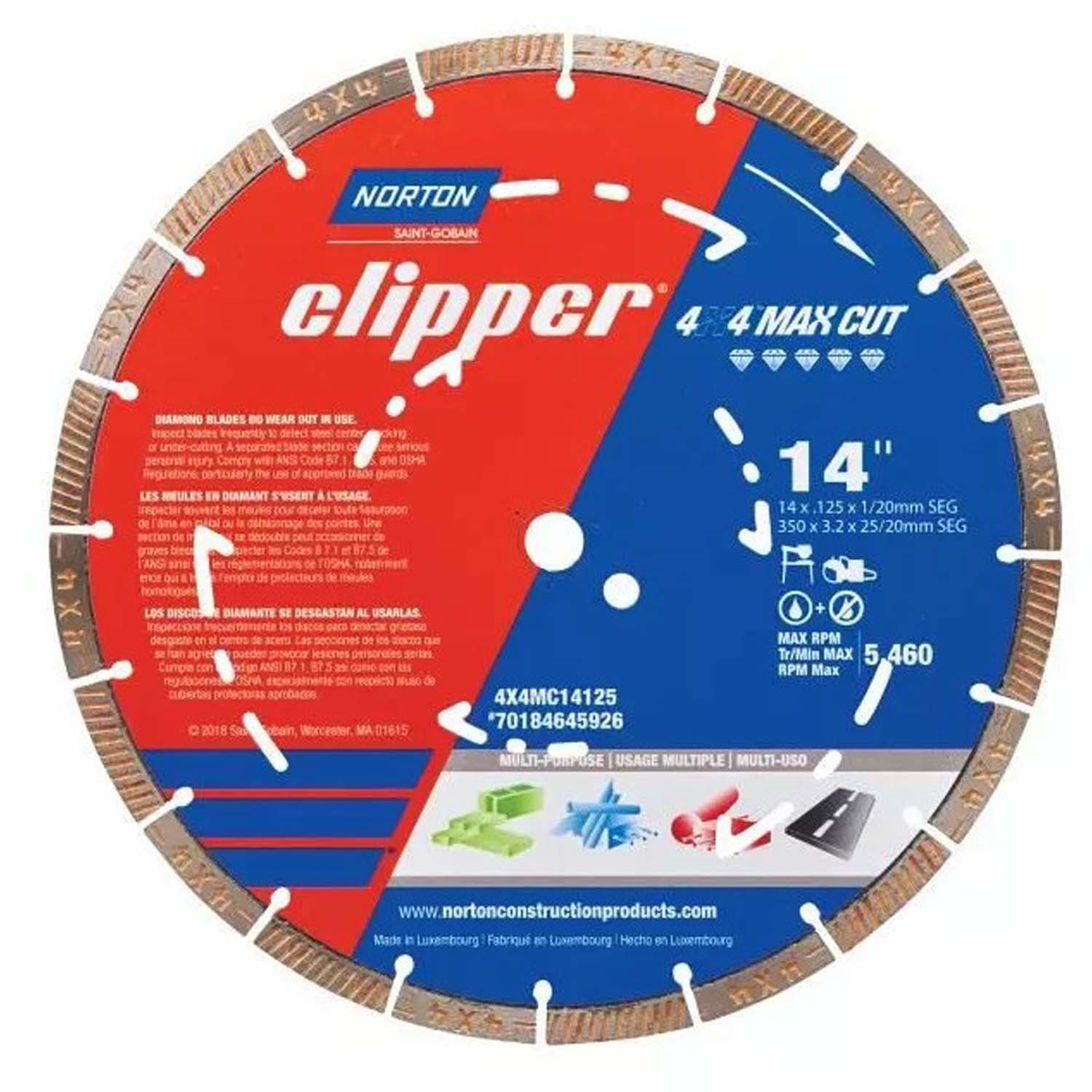

14 IN. X .125 X 1/20MM MULTI-PURPOSE MATERIALS HARD DRY DIAMOND BLADE
Load Rate: 4.30 lbs per cubic yard
Disclaimer - The colors on this website are approximate. To confirm an exact color, have your sales rep prepare a color sample for your approval before actual construction. DARRAGH accepts no responsibility for color matching or misprints.
562042
Description
The Norton Clipper 4X4 MAX CUT is taking high-speed cutting versatility to an all new level. The same standard features as the 4X4 with its anti-crack gullets and patented depth indicators that not only cool the blade but also allow the operator to know how deep they are cutting. An all new bond and diamond specification improves blade life in a wide range of materials while excelling in steel. New segment wear indicators give the operator an idea of remaining blade life.
Key Features
- Premium iHD technology allows better cutting and consistency, increasing blade life
- Anti-crack ellipsoidal gullets resists cracking of steel core under extreme conditions
- Stroboscopic indicators eliminate overcutting and allow faster cooling of blade
- Segment wear indicators show remaining blade life
- Specifications:
- Cutting Condition: Dry
- Diameter: 14 in.
- Arbor Hole: 1 in.-20 mm
- Total Height: .472 in.
- Max Operating Speed: 5460
- Segment Length: 1.967 in.
- Segment Thickness: .125 in.
- Segments: 20
- Industries:
- Building & Construction
- Manufacturing
- Metal Fabrication
- Home Inprovement
- Paint & Drywall
- Applications:
- Cutting
- Materials:
- Soft Carbon Steels
- Machines:
- High-Speed Saw
