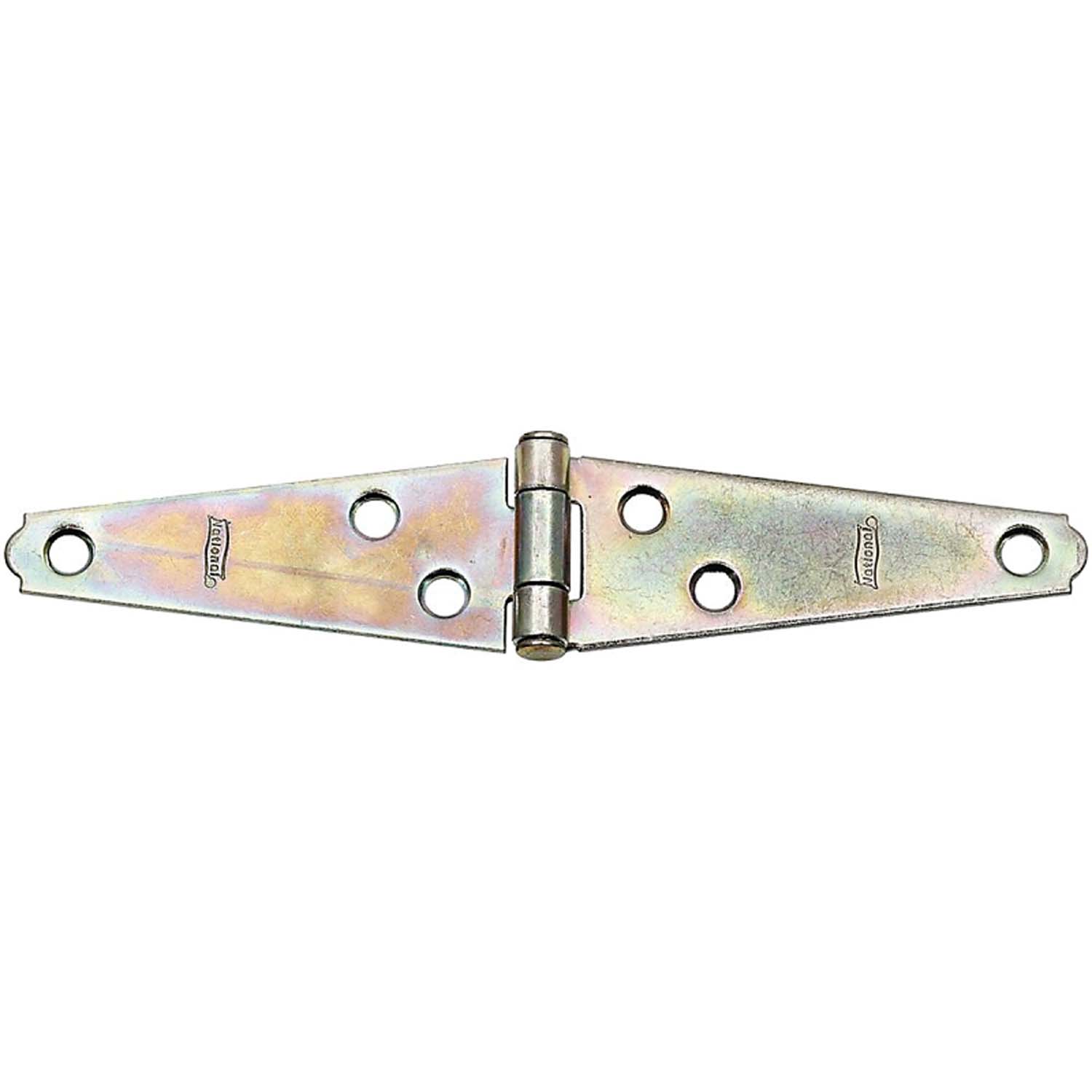

1-3/16 IN. X 3.6 X 5.4 STRAP HINGE

Description

Offset screw holes for extra strength and to prevent wood from splitting. Tight pin for left or right hand applications. Steel with aluminum pin. Safe working load: 18 lb. Boxed loose.

Key Features

• National Hardware N127-431 Strap Hinge, 1-3/16 in W Frame Leaf, 0.056 in Thick Leaf, Steel, Zinc, 18 lb
• Dimensions: 5-11/16 in
• Door Leaf Length: 2.84 in
• Finish: Zinc
• Frame Leaf Width: 1-3/16 in
• Leaf Thickness: 0.056 in
• Material: Steel
• Number Of Holes: 6
• Pin Diameter: 0.17 in
• Weight Capacity: 18 lb
• Offset screw holes for extra strength and to prevent wood from splitting
• Tight pin for left or right hand applications
• Country of Origin: CN
